Allgemeine Information

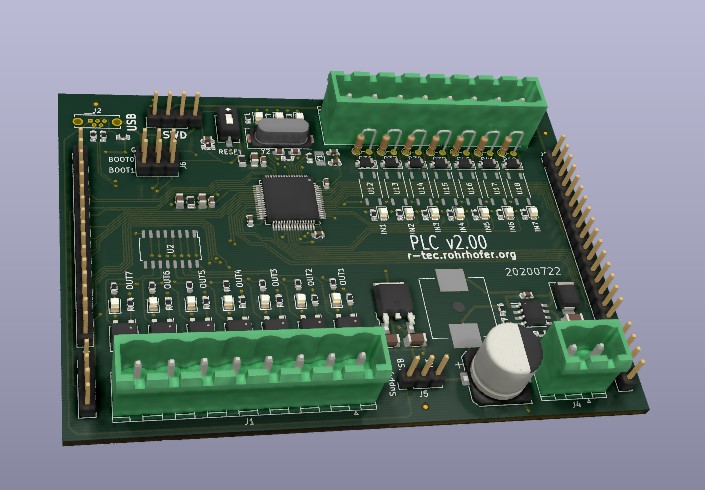

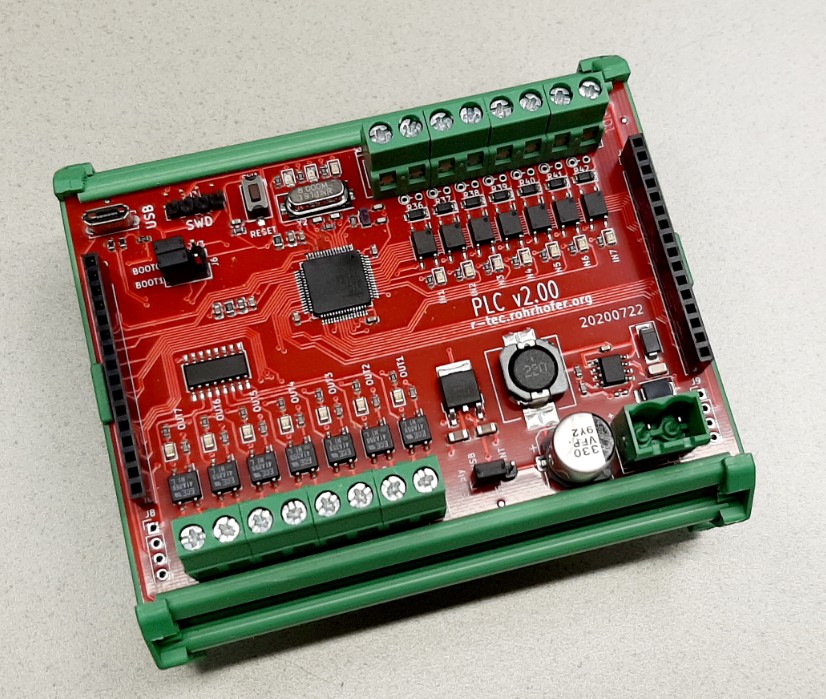

STM32 IO Board ist ein Schweizer-Taschenmesser für kleine Automatisierungen.
Das Board hat

- 7 Optogekoppelte Eingänge (Eingangsspannung per Widerstand wählbar)

- 7 SolidState Ausgänge bis zu 230V / 200mA per Kanal kurzschlussgeschützt

- ausgeführte ADC Kanäle des STM32 Prozessors

- Status LED's für alle Ein- und Ausgänge

- USB für Virtual Com Port Verbindung

- Versorgungspannung 6-30VDC

- Ausgeführte SWD Programmierschnittstelle für den Controller, damit auch eigene Programme aufgespielt werden können.

- Kompatibel mit der Arduino IDE


Beliebig viele verwendbaren Boards pro PC*

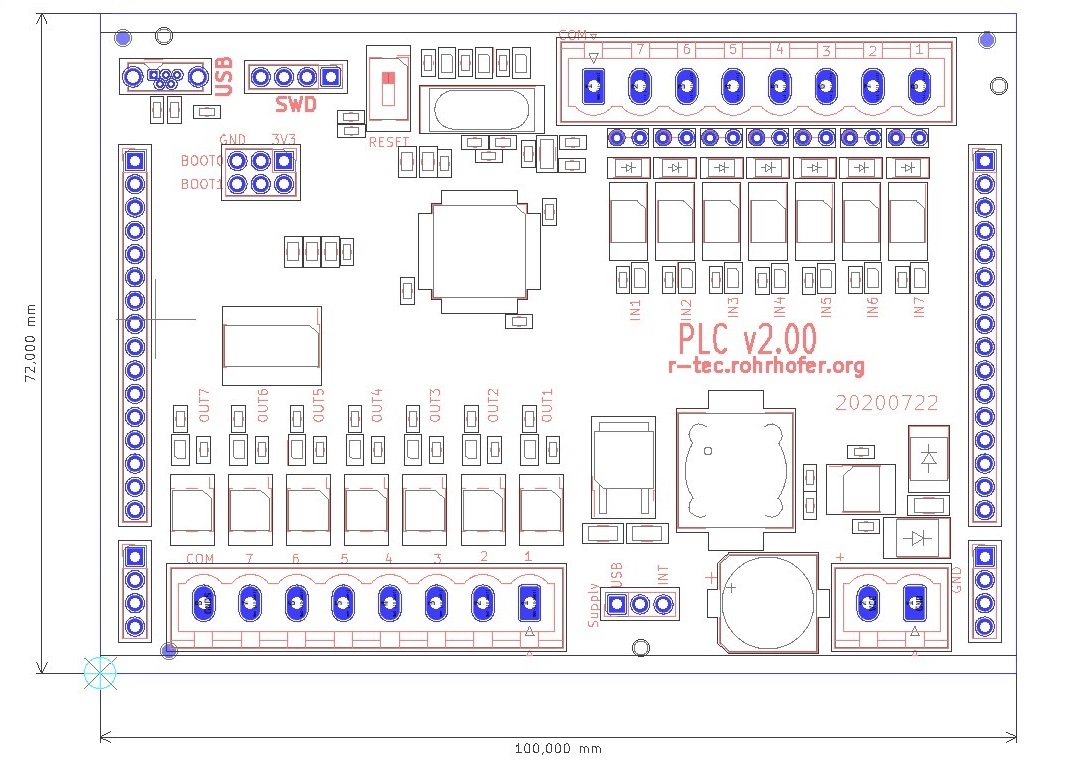

 Abmessungen

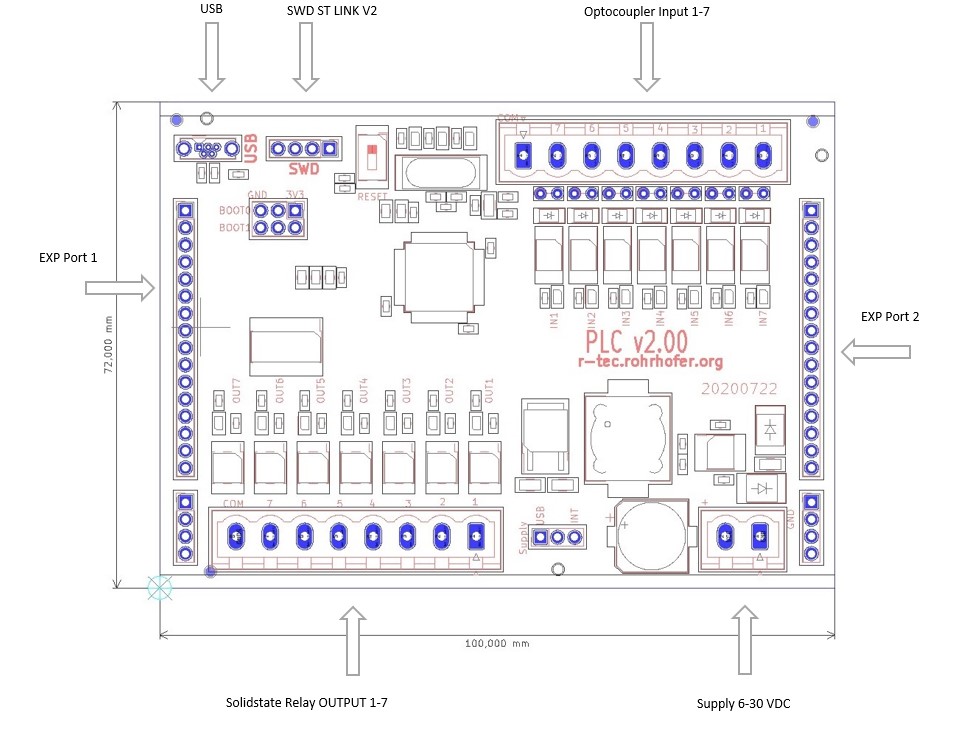

 IO Schema


Pinout - Optocoupler Inputs

Pinout - SolidStateRelay Outputs

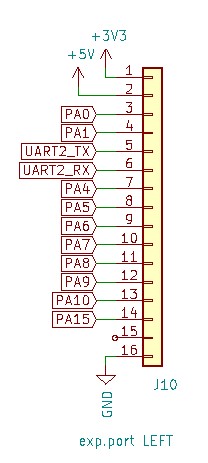

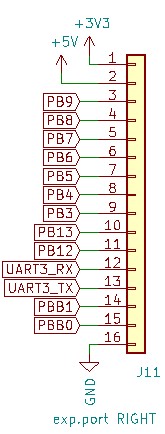

Pinout - Expansion Ports





Pinout - SWD Link

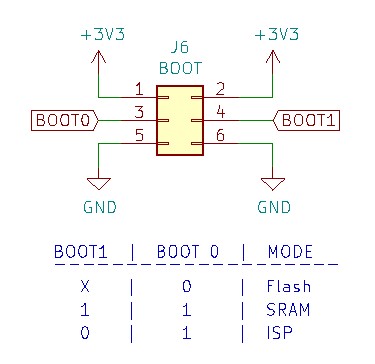

Pinout - BOOT Jumper settings
